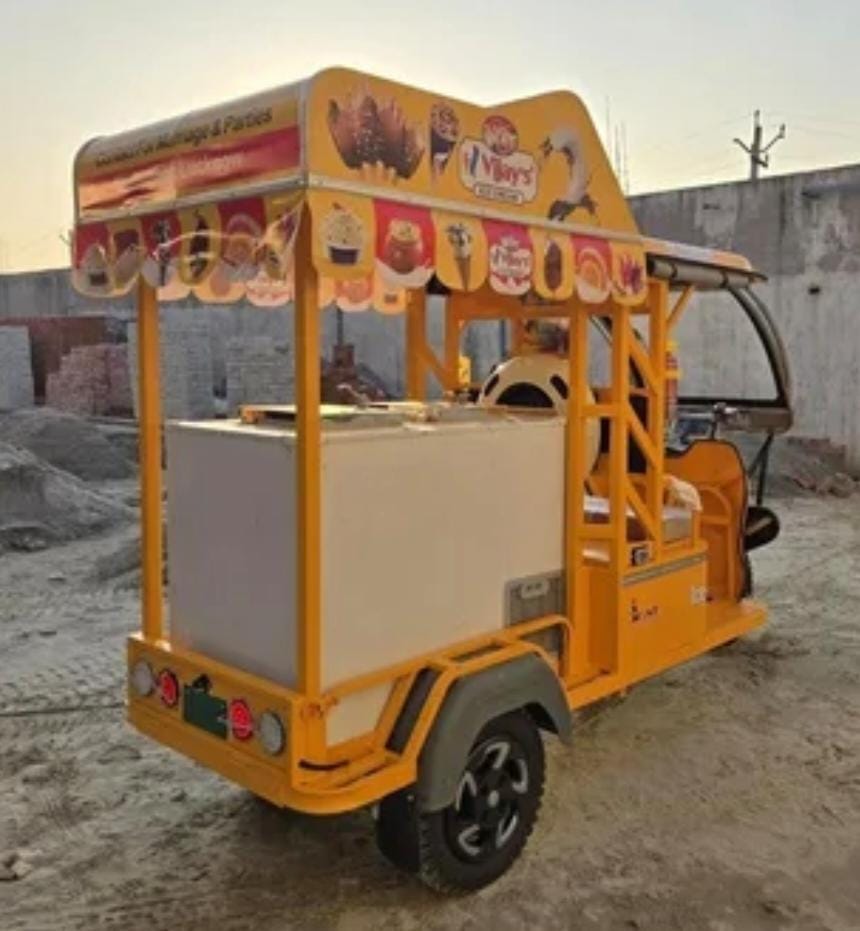

E ICE CREAM RICKSHAW

E ICE CREAM RICKSHAW Specification

Manufacturing Year
2024

Weight
350 kg

Ground Clearance
180 mm

Battery Life
2-3 Years

Usage & Applications
Ice Cream Vending

Charger Capacity
48V 10A

Frequency
50 Hz

Range
70-80 km per charge

Product Model
E ICE CREAM RICKSHAW

Torque
32 Nm

Input Voltage
230V AC

Vehicle Model
E ICE CREAM RICKSHAW 2024

Charging Time
6-8 Hours

Motor Power
1000W

Batteries Type
Lead Acid Battery

Features
Thermal Insulation Box, LED Lighting, Solar Charging Provision, Heavy Duty Suspension

Vehicle Type
Electric Rickshaw

Model No
EICR-2024

Drive Type
Rear Wheel Drive

Battery Capacity
100 Ah

Wheelbase
2100 mm

Seat Capacity (Person)
1

Charger Type
Automatic Smart Charger

Top Speed
25 km/h

Lighting
Headlight, Tail/Brake Light, Indicator Lamps

Cold Storage Compartment Volume
200 Liters

Width
1000 mm

Color Options
Blue, Yellow, Custom Colors

Braking System
Drum Brakes

Height
1800 mm

Tyre Size
3.00-17

Power Source
Electric Battery

Temperature Range
-20C to +8C

Rear Suspension
Leaf Spring

Front Suspension
Hydraulic Telescopic

Length
2850 mm

Roof Type
Waterproof Canopy

Body Material
Mild Steel / FRP

E ICE CREAM RICKSHAW Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About E ICE CREAM RICKSHAW

1.1200watts/48v watts Motor Controller 1 Years Warranty

2.Differential 38 Inch. 1 Years Warranty Manufacturing Fault

3.105ah/48V LITHIUM Battery 3 Years Warranty (150ah/60V Price-40,000/- Extra)

4.20 Amp. Charger 2 Years Warranty

5.Including Fire Bottle

6.FM

7.Tool kit With Jeck

8.Led Headlight and Tail Light

9.Digital Meter

10.3.75/12 Tyre Company 1 Years Warranty Manufacturing Fault

11.Heavy Duty Front Shockers With Sprinng

12.Heavy Duty Kamani

13.10 MM Wearing

14.1 Stepney

15.Front Glass with Wiper

16.Dalla Size - 5Lx4Wx5H Feet

17.Loading Capacity 600kg

18.Range 80km to 90km (Full Charge)

19.Charging Time 5 to 6 Hour

20.Heavy Duty Chassis

Superior Cold Storage Efficiency

This rickshaw is equipped with a 200-liter insulated cold storage compartment, capable of maintaining temperatures from -20C to +8C. It ensures your ice cream remains perfectly stored throughout the day. Together with a waterproof canopy and thermal insulation, vendors can deliver high-quality products even in challenging climates, expanding their reach to various markets.

Eco-Friendly and Cost-Effective Operation

Powered by an electric battery and offering a charging time of 6-8 hours, the E ICE CREAM RICKSHAW reduces fuel costs and environmental impact. Its automatic smart charger and provision for solar charging make daily operations easier and lower total running expenses, supporting a sustainable and profitable vending business.

FAQ's of E ICE CREAM RICKSHAW:

Q: How does the E ICE CREAM RICKSHAW keep ice cream cold while on the move?

A: The rickshaw features a 200-liter cold storage compartment with thermal insulation, which maintains internal temperatures between -20C and +8C. This ensures your ice cream stays fresh, even during long vending hours in various weather conditions.

Q: What benefits does the electric power source offer over traditional fuel-powered carts?

A: Using a 1000W electric motor and a 48V 100Ah lead acid battery, the rickshaw provides a quiet, emission-free performance. It offers a range of 70-80 km per charge, reducing both environmental impact and operational costs compared to traditional fuel-powered vehicles.

Q: When and where can I use the E ICE CREAM RICKSHAW for vending?

A: Designed for versatility, the rickshaw is suitable for mobile vending in urban and rural areas, markets, parks, and events. Its dependable suspension and compact size make it easy to maneuver through crowded places and various terrains.

Q: What is the charging process and how long does it take?

A: The rickshaw is equipped with an automatic smart charger (48V 10A), which can be plugged into a standard 230V AC outlet. Full charging takes approximately 6-8 hours, ensuring you can conveniently charge it overnight for daily use.

Q: How is maintenance handled for this electric rickshaw?

A: Maintenance is straightforward due to the robust mild steel/FRP build, tried-and-tested suspension, and readily available drum brakes and lead acid batteries. Regular fittings, brake checks, and battery water top-ups will keep the vehicle running efficiently.

Q: What makes the E ICE CREAM RICKSHAW a good investment for ice cream vendors?

A: Its low operational cost, energy efficiency, high-capacity cold storage, customizable appearance, and sturdy design help vendors maximize profit while offering reliable service. Additional features such as LED lighting and solar charging expand operational hours and reduce reliance on external power.
