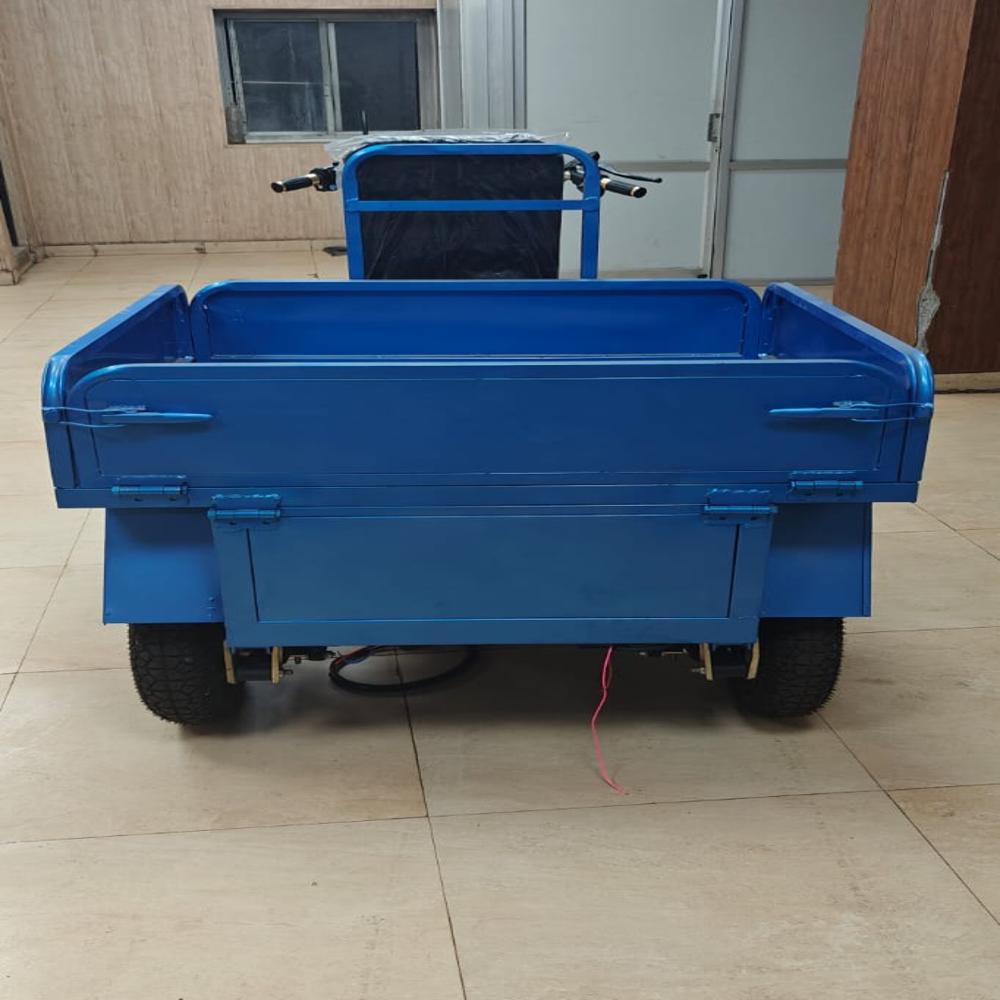

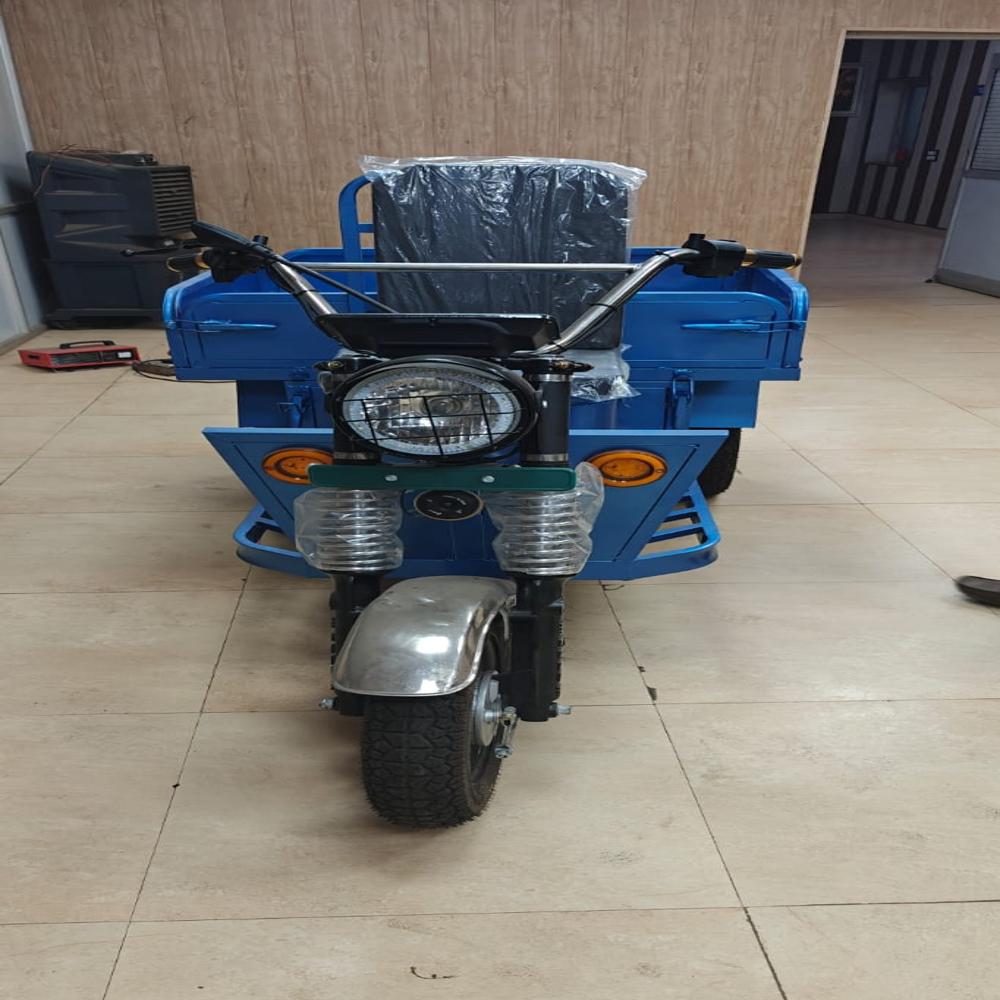

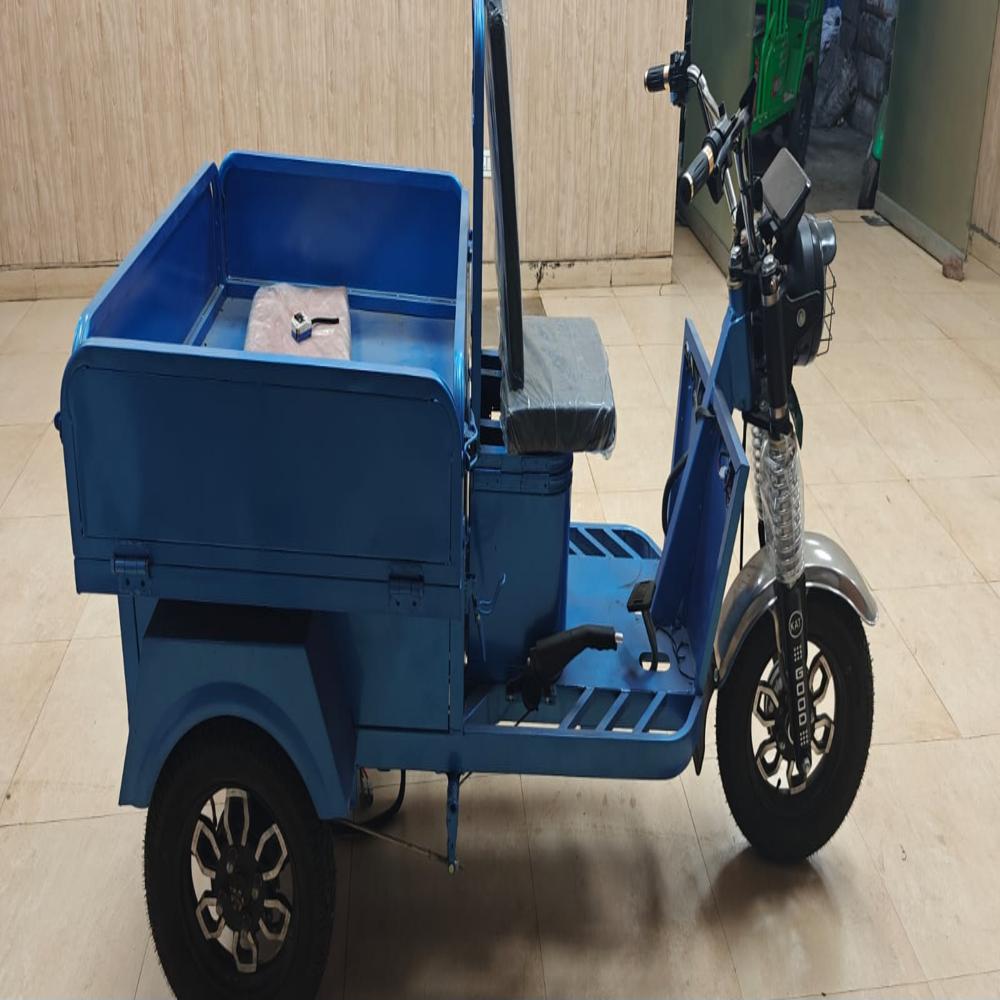

E MINI LOADER RICKSHAW

E MINI LOADER RICKSHAW Specification

Manufacturing Year
2024

Features
Heavy Duty Chassis, Hydraulic Brakes, Reverse Gear, LED Headlight

Input Voltage
220V AC

Seat Capacity (Person)
1 Driver + 1 Co-driver

Charger Type
Automatic Smart Charger

Range
80-100 km per charge

Charger Capacity
12A

Usage & Applications
Commercial Loading and Transportation

Torque
30 Nm

Drive Type
Rear Wheel Drive

Charging Time
6-8 Hours

Wheelbase
2100 mm

Weight
320 kg

Frequency
50 Hz

Model No
EMLR2024

Battery Life
500 Cycles

Product Model
E Mini Loader Rickshaw

Battery Capacity
48V 100Ah

Batteries Type
Lead Acid

Ground Clearance
180 mm

Vehicle Model
Loader Rickshaw Mini

Vehicle Type
Electric Loader Rickshaw

Motor Power
1000W

Top Speed
25 km/h

Color Options
Red, Blue, Green, Yellow

Display Type
Digital Meter

Tyre Size
3.75-12

Brake Type
Hydraulic Drum

Suspension
Heavy Duty Leaf Spring

Controller
24 Tube Controller

Transmission
Single Speed

Dimensions (L x W x H)
2770 x 995 x 1750 mm

Loading Capacity
500 kg

Body Material
MS Sheet and Pipe

E MINI LOADER RICKSHAW Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About E MINI LOADER RICKSHAW

1.1000watts/48v watts Motor Controller 1 Years Warranty

2.Differential 28 Inch. 1 Years Warranty Manufacturing Fault

3.75ah/48V Lithium Battery 1 Years Warranty

4.15 Amp. Charger 1 Years Warranty

5.Including Fire Bottle

6.FM

7.Tool kit With Jeck

8.Led Headlight and Tail Light

9.Digital Meter

10.90/90/12 Tyre

11.Heavy Duty Front Shockers

12.Heavy Duty Kamani

13.10 MM Wearing

14.1 Stepney

15.Front Glass with Wiper

16.Dalla Size - 3.5Lx3Wx1H Feet

17.Loading Capacity 300kg

18.Range 60km to 70km (Full Charge)

19.Charging Time 4 to 5 Hour

20.Heavy Duty Chassis

Sturdy and Reliable Construction

The E Mini Loader Rickshaw is built with a strong MS sheet and pipe frame, providing excellent durability for daily use in commercial industries. Its heavy duty chassis and suspension system are engineered to handle rigorous transportation demands while maintaining stability and comfort.

Efficient Loading and Transportation

With a loading capacity of 500 kg and a spacious platform, the E Mini Loader Rickshaw is ideal for moving goods and packages over short to medium distances. Its single speed transmission and rear wheel drive optimize energy efficiency and effortless operation, making it suitable for urban and rural settings.

Advanced Electric Powertrain

Powered by a 1000W electric motor and a 48V 100Ah lead acid battery, the loader rickshaw achieves a range of 80-100 km per charge. Charging is safe and convenient with the included automatic smart charger. The electric design significantly lowers running costs and reduces emissions.

FAQ's of E MINI LOADER RICKSHAW:

Q: How do I charge the E Mini Loader Rickshaw and how long does it take?

A: Charging the E Mini Loader Rickshaw is straightforward-simply connect it to a 220V AC power source using the provided automatic smart charger. The battery takes approximately 6-8 hours to achieve a full charge.

Q: What kinds of goods can be transported with this loader rickshaw?

A: This electric loader rickshaw is designed for commercial use and can transport a variety of goods up to a maximum load of 500 kg, making it suitable for small-scale logistics, deliveries, and market vendors.

Q: Where can the E Mini Loader Rickshaw be used most effectively?

A: The E Mini Loader Rickshaw is ideal for use in urban and semi-urban areas, industrial estates, markets, and warehouses, thanks to its compact dimensions, strong build, and efficient performance.

Q: What are the main benefits of the Heavy Duty Leaf Spring suspension?

A: The Heavy Duty Leaf Spring suspension provides improved load-bearing capacity and ensures stability, even when carrying heavy cargo, resulting in a smoother ride and enhanced vehicle durability.

Q: How does the digital meter assist the operator?

A: The digital meter displays essential information such as speed, battery level, and distance traveled, allowing the driver to monitor the vehicle's performance and charge status efficiently.

Q: What is the process for routine maintenance of the loader rickshaw?

A: Routine maintenance includes regular inspection of the brake system, suspension, electrical components, and batteries. It is recommended to check tyre pressure, water levels in batteries, and ensure proper charging for optimal performance and extended vehicle life.

Q: What safety features are included with this loader rickshaw?

A: Safety features include hydraulic drum brakes for effective stopping power, a reverse gear for maneuverability, LED headlights for better visibility at night, and a robust structure to protect the driver during loading operations.
