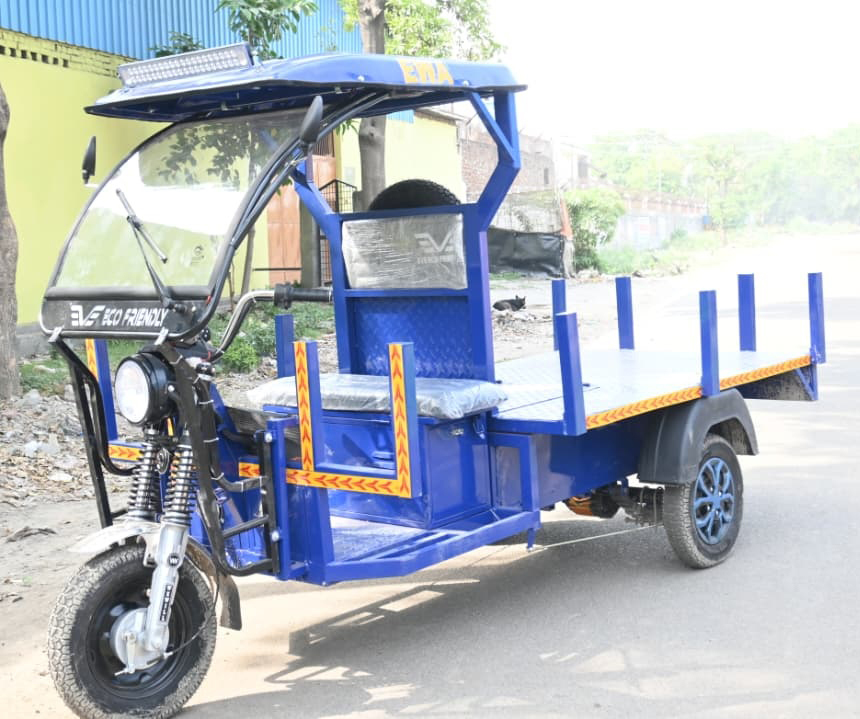

E-Rickshaw Loader

E-Rickshaw Loader Specification

Features
Eco-friendly, Low Maintenance, Strong Chassis, Large Load Deck

Motor Power
1000 W

Usage & Applications
Commercial Material Transport, Last Mile Delivery

Vehicle Type
Three Wheeler Electric Loader

Charger Type
Automatic Smart Charger

Charger Capacity
48V 12A

Wheelbase
2100 mm

Batteries Type
Lead Acid/ Lithium-Ion

Drive Type
Electric, Rear Wheel Drive

Ground Clearance
180 mm

Top Speed
25 km/h

Range
80-100 km/charge

Battery Life
1-2 Years (Lead Acid), 3-5 Years (Lithium-Ion)

Frequency
50 Hz

Torque
16 Nm

Charging Time
6-8 hours

Manufacturing Year
2024

Product Model
Electric Loader-2024

Weight
380 kg (Unladen)

Vehicle Model
E-Rickshaw Loader

Seat Capacity (Person)
1 (Driver Only)

Battery Capacity
100-120 Ah

Input Voltage
220 V AC

Model No
EL-Loader X1

Maximum Payload Capacity
600 kg

Tyre Size
3.75-12

Brake Type
Drum Brakes (Front & Rear)

Steering Type
Handle Bar Steering

Overall Height
1750 mm

Overall Width
1000 mm

Body Type
Heavy Duty Steel Frame

Suspension (Front)
Hydraulic Telescopic

Overall Length
2800 mm

Suspension (Rear)
Leaf Spring

Color Options
Blue, Green, Red, Yellow

E-Rickshaw Loader Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
3 Days

About E-Rickshaw Loader

1.1200watts/48v watts Motor Controller 1 Years Warranty

2.Differential 38 Inch. 1 Years Warranty Manufacturing Fault

3.105ah/48V LITHIUM BATTERY 3 Years Warranty (150ah/60V Price-40,000/- Extra)

4.20 Amp. Charger 2 Years Warranty

5.Including Fire Bottle

6.FM

7.Tool kit With Jeck

8.Led Headlight and Tail Light

9.Digital Meter

10.4.00/12 Tyre Company 1 Years Warranty Manufacturing Fault

11.Heavy Duty Front Shockers With Sprinng

12.Heavy Duty Kamani

13.10 MM Wearing

14.1 Stepney

15.Front Glass with Wiper

16.Dalla Size - 5Lx4Wx2H Feet

17.Loading Capacity 600kg

18.Range 80km to 90km (Full Charge)

19.Charging Time 5 to 6 Hour

20.Heavy Duty Chassis Double Pipe

Superior Payload Capacity & Design

The EL-Loader X1 stands out for its maximum payload of 600 kg, supported by a strong heavy-duty steel frame and large load deck. Its compact dimensions and high ground clearance of 180 mm allow seamless navigation in crowded urban streets, ensuring efficient last-mile delivery and commercial loading requirements are always met.

Efficient Electric Performance

Powered by a 1000 W motor and either lead acid or lithium-ion batteries, this e-rickshaw loader offers a range of 80-100 km per charge. The rear-wheel electric drive provides a smooth ride, complemented by hydraulic telescopic front suspension and leaf spring rear suspension for handling varied road conditions.

Eco-Friendly & Low Maintenance

With zero emissions, the EL-Loader X1 supports sustainable logistics. Its automatic smart charger (48V 12A) efficiently recharges the battery within 6-8 hours using standard 220 V AC, reducing operating costs and environmental footprint while providing high reliability and reduced maintenance demands for owners.

FAQ's of E-Rickshaw Loader:

Q: How do I charge the E-Rickshaw Loader and how long does it take?

A: The EL-Loader X1 uses an automatic smart charger, plugging directly into a 220 V AC outlet. The full battery charging process typically takes 6 to 8 hours to complete.

Q: What is the payload capacity and what types of loads can it carry?

A: This e-rickshaw loader is designed with a maximum payload capacity of 600 kg, making it ideal for transporting commercial goods, materials, and facilitating last-mile deliveries efficiently.

Q: Where can the E-Rickshaw Loader be best utilized?

A: The loader is perfect for commercial hubs, markets, warehouses, and urban transportation routes, excelling at last-mile delivery and material transport within cities and towns across India.

Q: What are the color options available for the EL-Loader X1?

A: The e-rickshaw loader is available in four vibrant color options: blue, green, red, and yellow, allowing you to choose according to your preference or business branding needs.

Q: What are the benefits of using this electric loader over traditional diesel or petrol loaders?

A: Being fully electric, the EL-Loader X1 offers eco-friendly operation with zero emissions, lower operating and maintenance costs, and a quieter ride. Its electric drive also enables efficient performance in urban environments.

Q: How long does the battery last and what are the replacement options?

A: Lead acid batteries last 1-2 years, while lithium-ion batteries offer a lifespan of 3-5 years. Replacement batteries are readily available through the supplier network for easy maintenance.
